Everything about designing a dining room layout

Dining Room

A Dining room provides space for dining and socializing. It is a dedicated room or area in a home where individuals or families gather to share food, conversation, and quality time. A well-designed dining room layout considers various factors, such as the given space distribution, the number of occupants of the dining table, traffic flow, and overall aesthetics.

Armchair Dimensions

Armchairs are comfortable, padded chairs designed with armrests and a high backrest, providing a cozy and supportive seating option. A compact armchair is 55x65 cm / 21.7"x25.6", and a large armchair would be 90x85 cm / 35.4"x33.5".

Armchair Dimensions

Armchairs are comfortable, padded chairs designed with armrests and a high backrest, providing a cozy and supportive seating option. A compact armchair is 55x65 cm / 21.7"x25.6", and a large armchair would be 90x85 cm / 35.4"x33.5".

Armchair Dimensions

Armchairs are comfortable, padded chairs designed with armrests and a high backrest, providing a cozy and supportive seating option. A compact armchair is 55x65 cm / 21.7"x25.6", and a large armchair would be 90x85 cm / 35.4"x33.5".

Follow us on social media

Discover Rayon today

Rayon is the fastest software to create perfect architectural drawings. Draw, specify and build, all in one tool.
try it for free
a screenshot of the Rayon app
See latest version
Rayon
  • Features
  • Pricing
  • Use cases
  • Roles
  • Customers
Resources
  • Documentation
  • Community
  • Academy
  • Blog
  • Space Planning Guide
  • Free Assets
  • Student Signup
Company
  • Team
  • Manifesto
  • Careers
Socials
  • Instagram
  • YouTube
  • TikTok
  • LinkedIn
  • Pinterest
  • X
Alternative to
  • AutoCAD
  • Sketchup
  • Vectorworks
  • Revit
  • ArchiCAD
  • FloorPlanner
  • Planner 5D
  • Cedreo
  • Icovia
©2026 Rayon
Privacy PolicyTerms

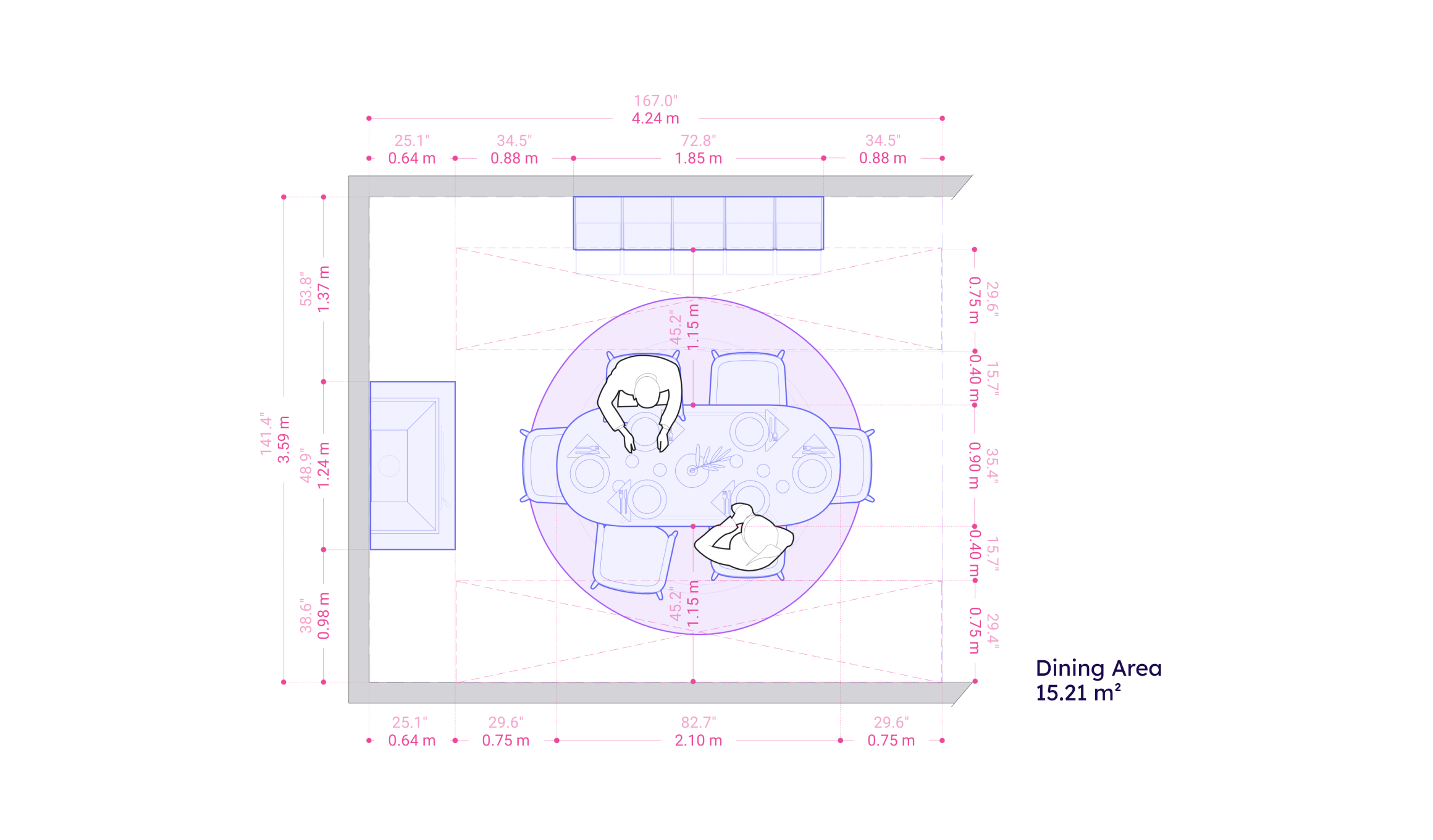

Standalone Dining Room

A standalone dining room is ideal for hosting gatherings, dinner parties, and other formal or holiday meals. It provides a barrier between the event and other activities in the household. Consider proper circulation and seating to ensure the room is comfortable. Additionally, it is important to place the room near other areas of the home, especially the kitchen, along with the guest bathroom, for efficient and accessible use.

Open in Rayon

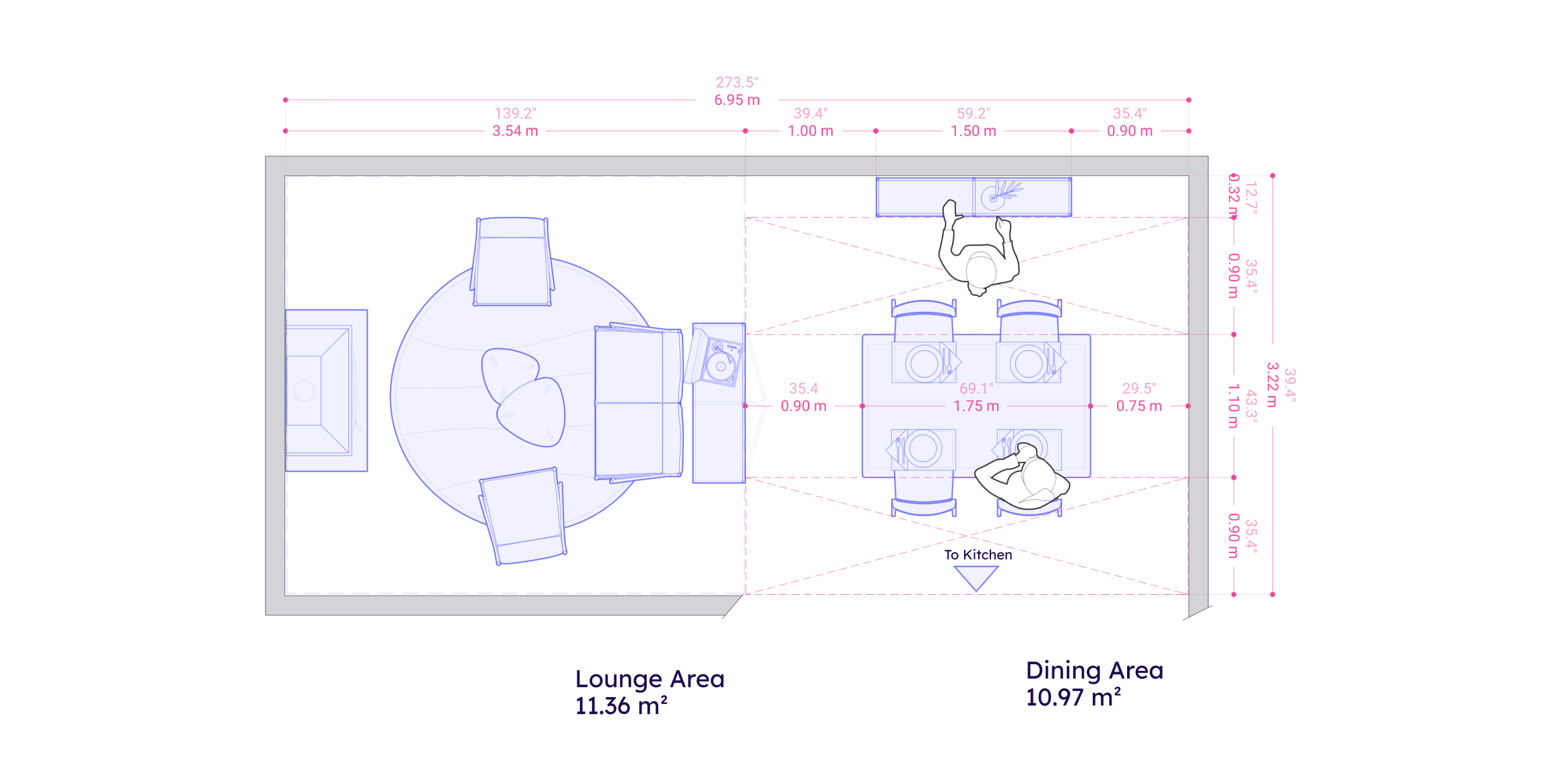

Living Room & 4 Seat Dining Area

This type of layout is often found in compact homes, apartments, or open-concept living spaces where optimizing space is essential. Keep in mind:

  • Spacing & circulation between the dining table and furniture should be 75-90 cm / 29.5"-35.4".
  • A four-seat table dimensions benchmark is 90-110 cm / 35.4"-43.3" x 90-180 cm / 35.4"-70.9".
Open in Rayon

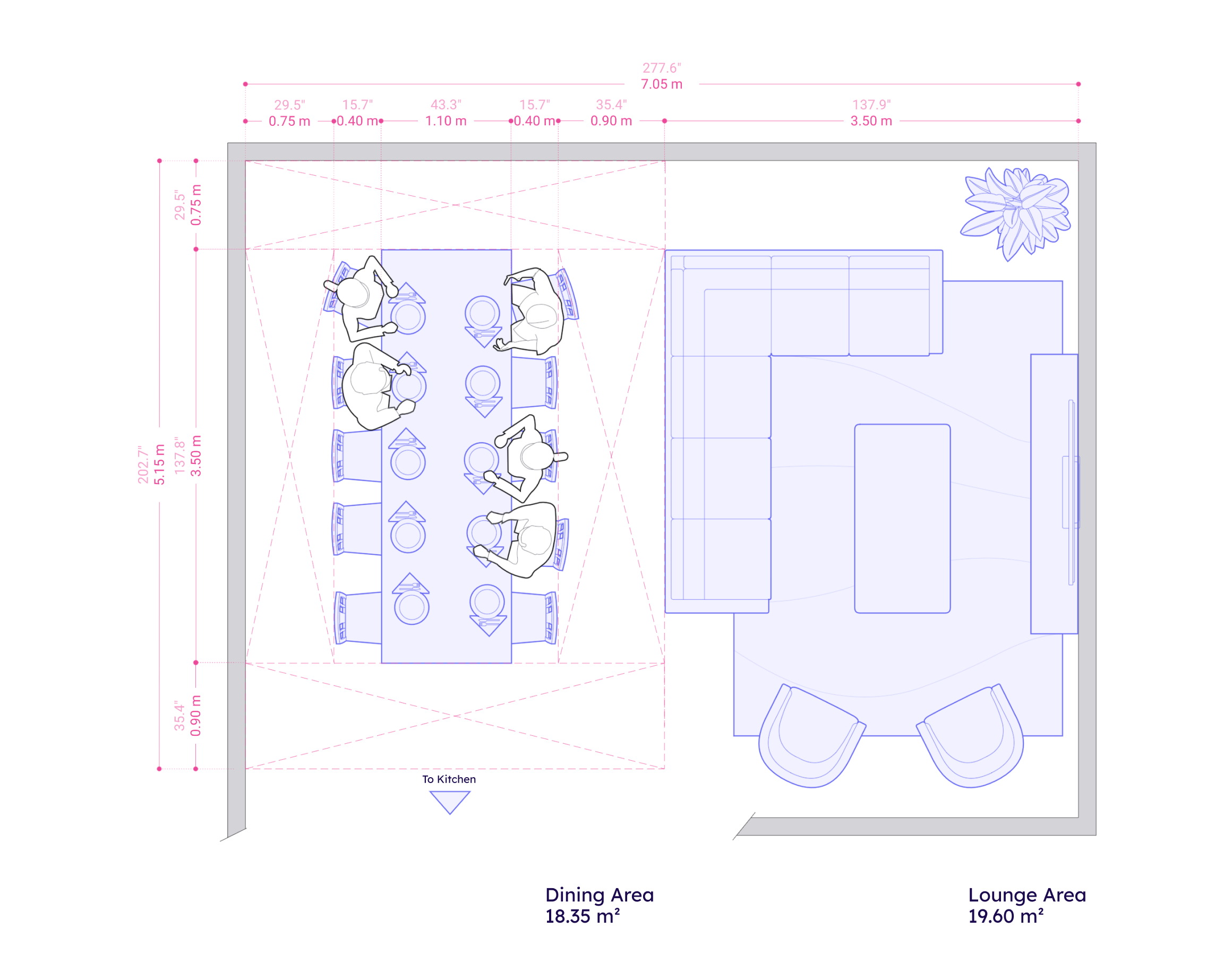

Living Room & 10 Seat Dining Area

A spacious dining area for accommodating large gatherings within an open space can be achieved by grouping furniture into distinct zones. Some benchmark dimensions to keep in mind for this space typology are:

  • Spacing & circulation between the dining table and furniture should be 75-90 cm / 29.5"-35.4".
  • A ten-seat table dimensions benchmark is 110 cm / 43.3" x 300-350 cm / 118.1"-137.8".

Open in Rayon

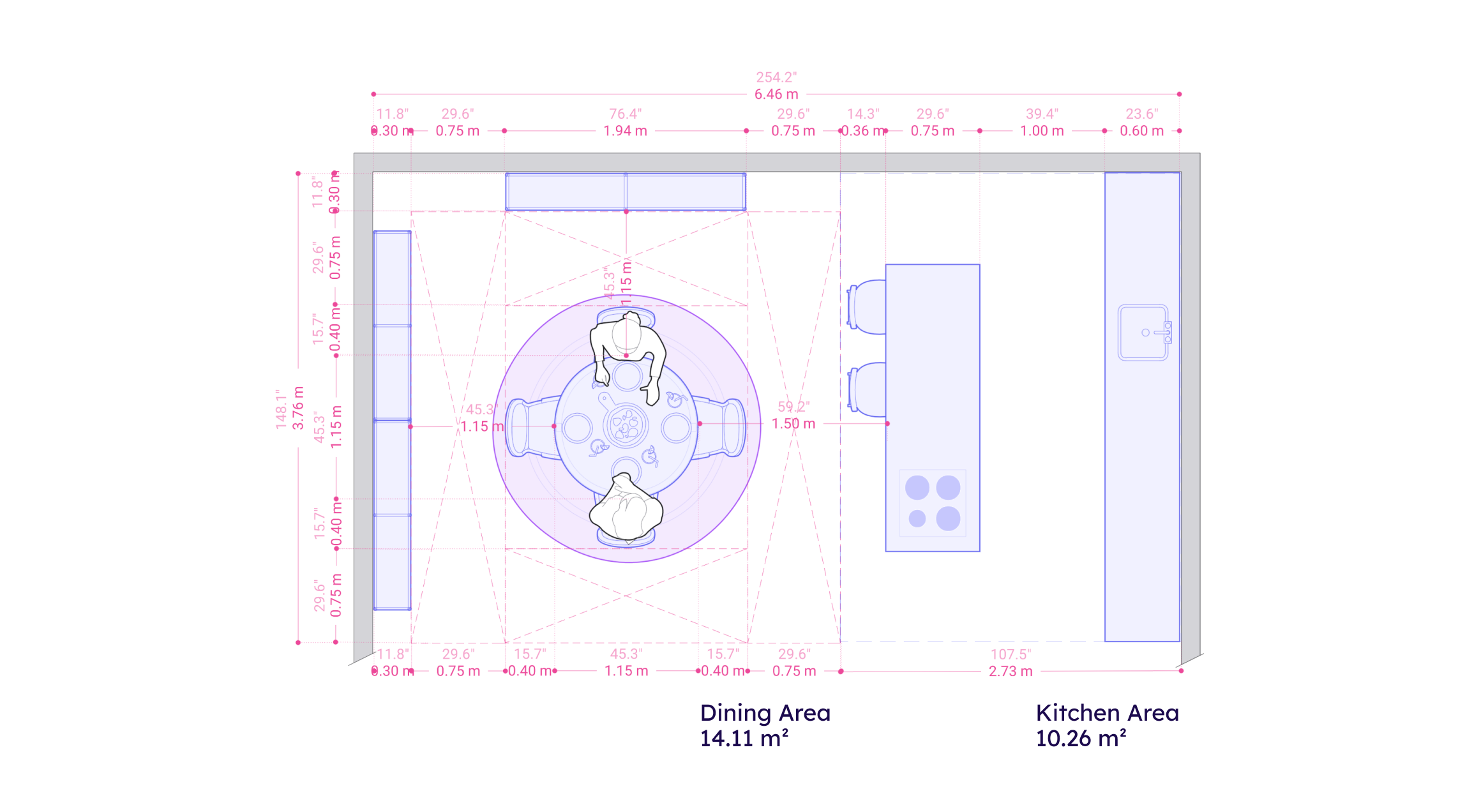

Open Space Kitchen, Island & Dining Area

The kitchen island and dining table have different functions: a dining table suits sit-down meals and entertaining social gatherings, while the kitchen island serves quick, casual snacks and informal interactions. Feel free to combine both seating arrangements in one open space to offer diverse experiences!

Open in Rayon

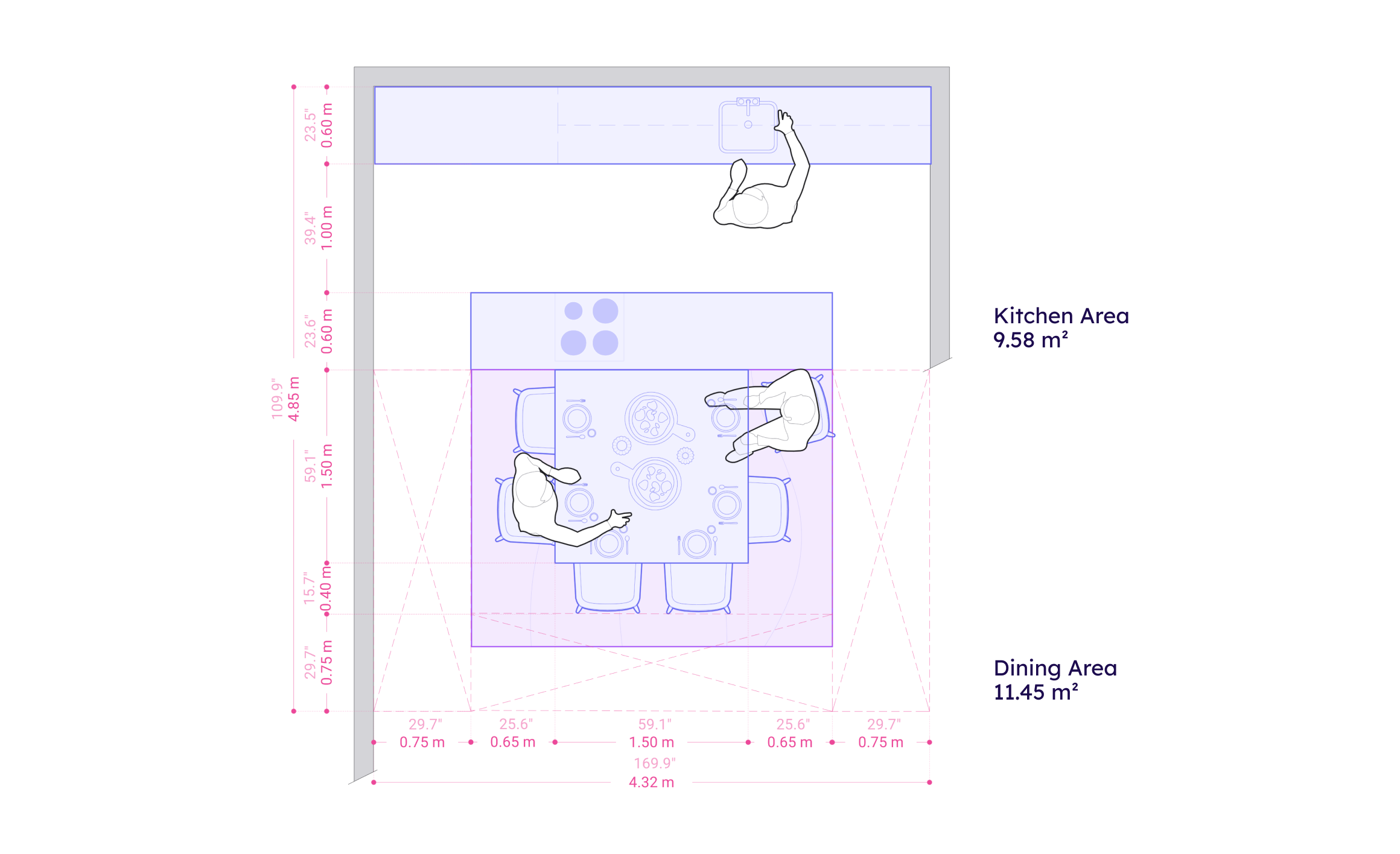

Integrated Kitchen & Dining Area

A kitchen and dining area combo makes for an efficient use of space and can create a continuous flow within a layout. One way to achieve this arrangement is by placing a dining table against a kitchen island - allowing for comfortable circulation.

Open in Rayon
