Everything about designing a dining room layout

Dining Room

A Dining room provides space for dining and socializing. It is a dedicated room or area in a home where individuals or families gather to share food, conversation, and quality time. A well-designed dining room layout considers various factors, such as the given space distribution, the number of occupants of the dining table, traffic flow, and overall aesthetics.

Armchair Dimensions

Armchairs are comfortable, padded chairs designed with armrests and a high backrest, providing a cozy and supportive seating option. A compact armchair is 55x65 cm / 21.7"x25.6", and a large armchair would be 90x85 cm / 35.4"x33.5".

Armchair Dimensions

Armchairs are comfortable, padded chairs designed with armrests and a high backrest, providing a cozy and supportive seating option. A compact armchair is 55x65 cm / 21.7"x25.6", and a large armchair would be 90x85 cm / 35.4"x33.5".

Armchair Dimensions

Armchairs are comfortable, padded chairs designed with armrests and a high backrest, providing a cozy and supportive seating option. A compact armchair is 55x65 cm / 21.7"x25.6", and a large armchair would be 90x85 cm / 35.4"x33.5".

Follow us on social media

Discover Rayon today

Rayon is the fastest software to create perfect architectural drawings. Draw, specify and build, all in one tool.
try it for free
a screenshot of the Rayon app
See latest version
Rayon
  • Features
  • Pricing
  • Use cases
  • Roles
  • Customers
Resources
  • Documentation
  • Community
  • Academy
  • Blog
  • Space Planning Guide
  • Free Assets
  • Student Signup
Company
  • Team
  • Manifesto
  • Careers
Socials
  • Instagram
  • YouTube
  • TikTok
  • LinkedIn
  • Pinterest
  • X
Alternative to
  • AutoCAD
  • Sketchup
  • Vectorworks
  • Revit
  • ArchiCAD
  • FloorPlanner
  • Planner 5D
  • Cedreo
  • Icovia
©2026 Rayon
Privacy PolicyTerms

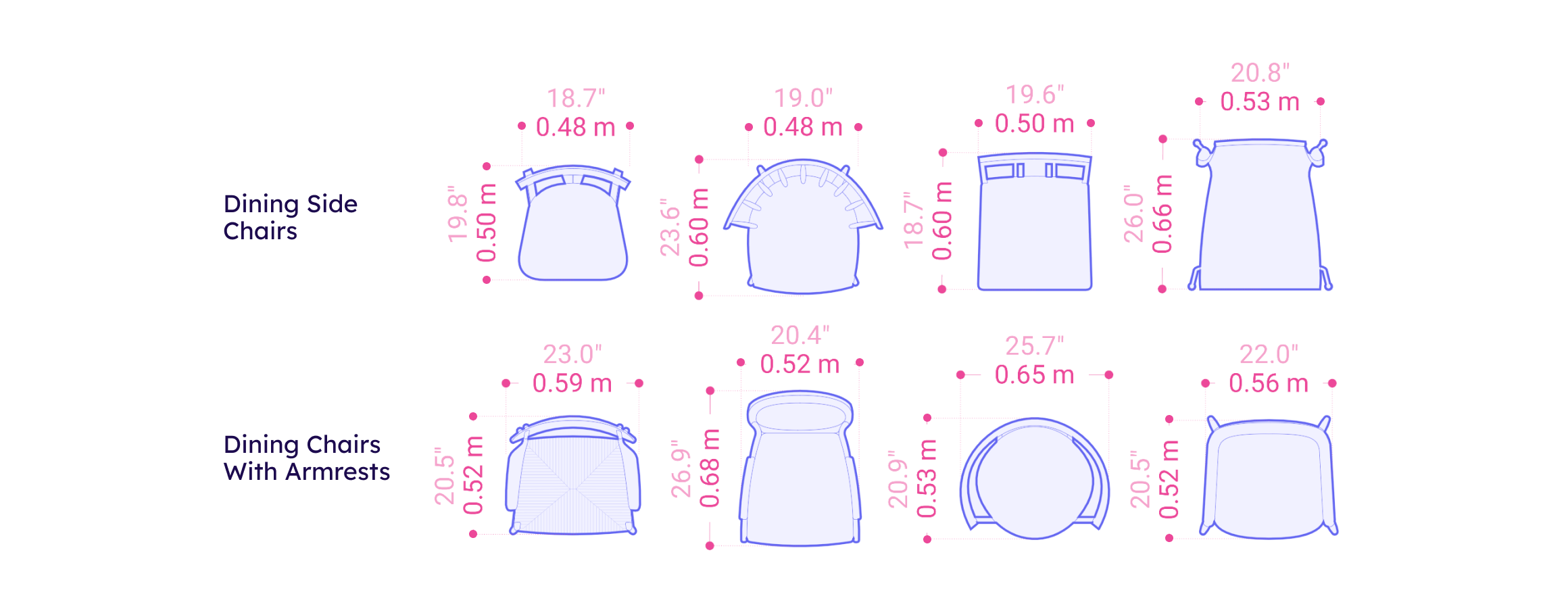

Chair Dimensions

Dining chairs have a straight back and sometimes provide an armrest for ergonomic use while eating. A benchmark size range is from 48x50 cm / 18.9"x19.7" to 60x66 cm / 23.6"x26.0". When choosing dining room chairs, consider comfort, durability, and style.

Open in Rayon

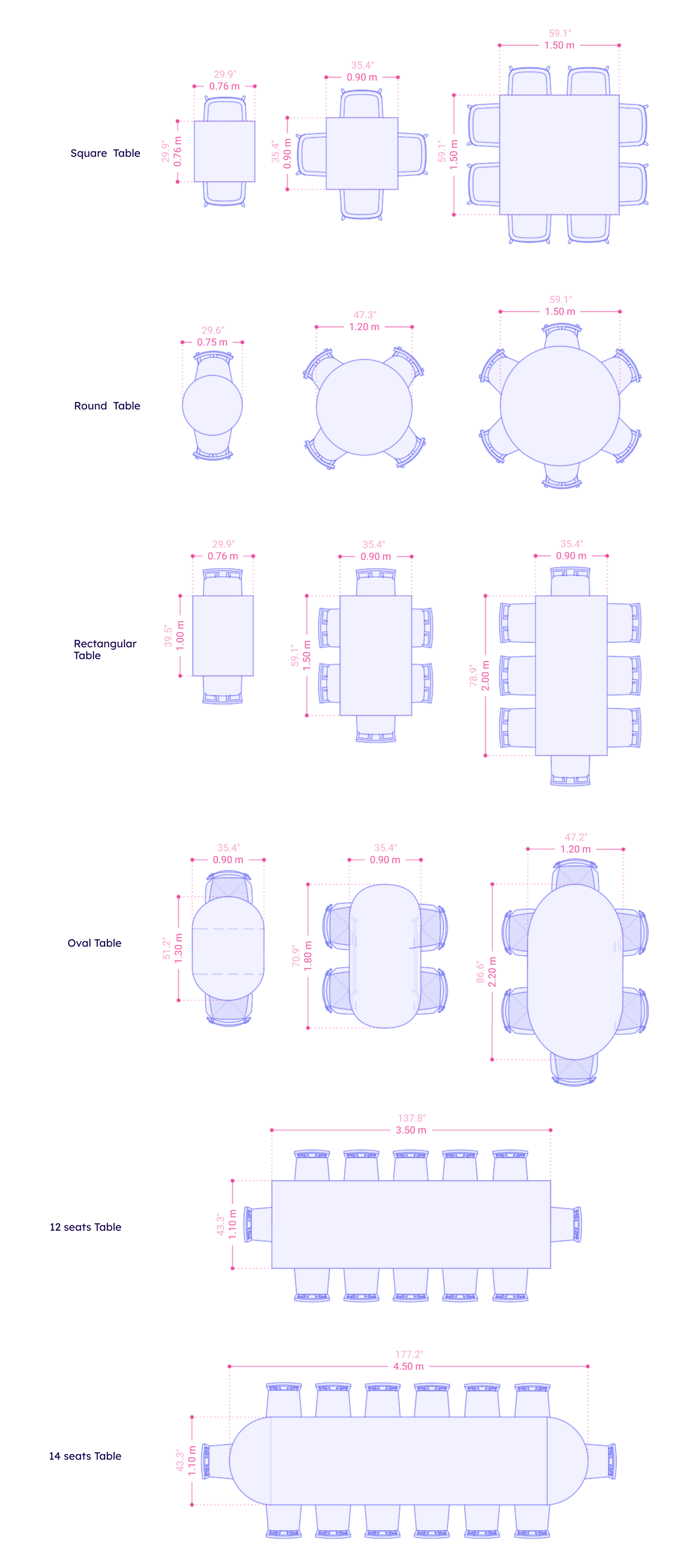

Dining Tables Dimensions

Dining tables come in various styles, shapes, and sizes and should be chosen according to the room size and number of occupants it should seat. Square and round table dimensions range from 76x76 cm / 29.9"x29.9" to 150x150 cm / 59.1"x59.1", while Rectangular and Oval table dimensions range from 76x100 cm / 29.9"x39.4" to 110x450 cm 43.3"x177.2".

Open in Rayon

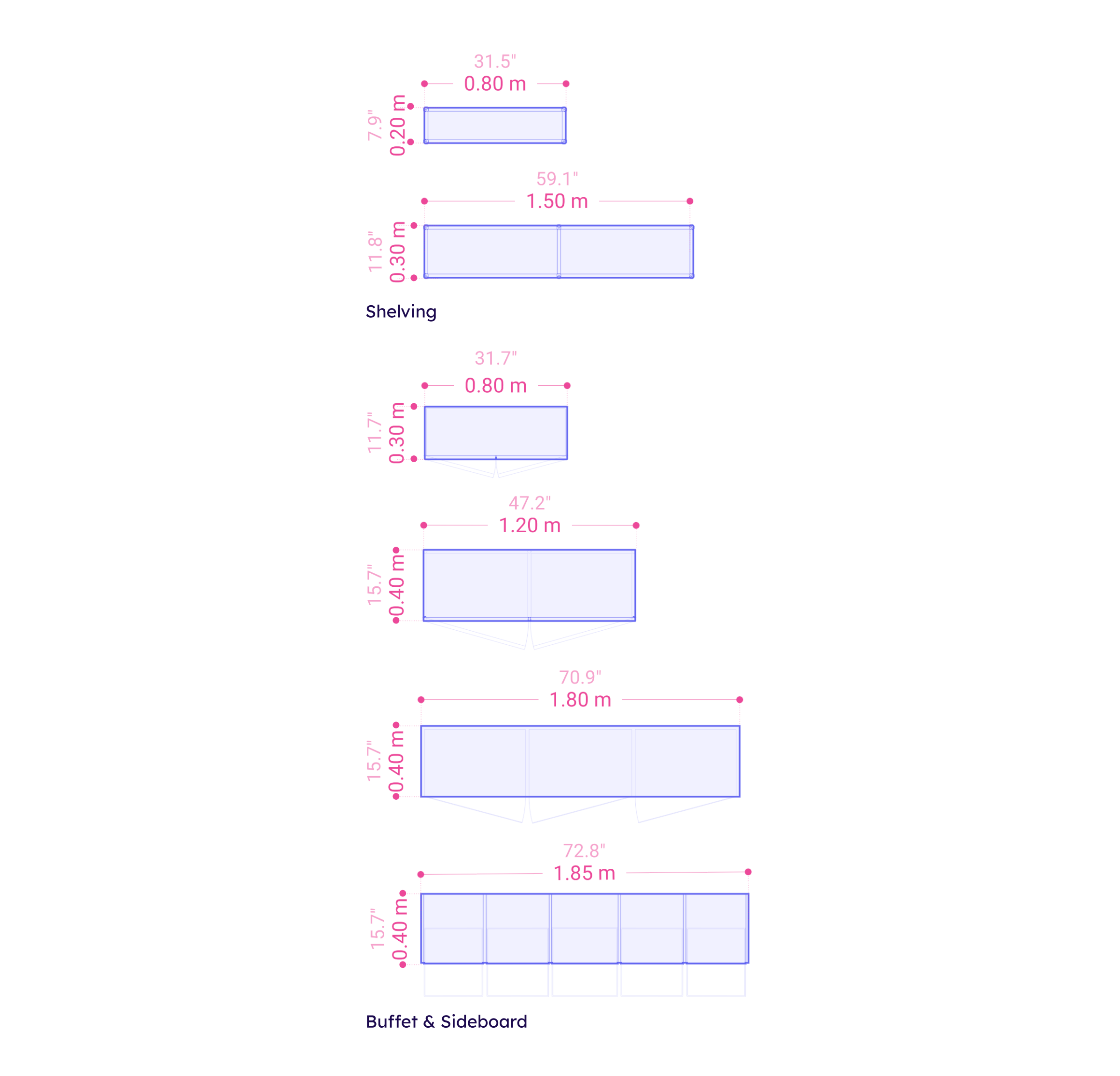

Buffet & Sideboard Dimensions

A buffet or sideboard provides additional storage for dinnerware, serving dishes, and other items while providing a convenient surface for serving food during meals. An average dimension ranges from 20-40 cm / 7.9"-15.7" in width to 80-185 cm / 31.5"-72.8" in depth.

Open in Rayon

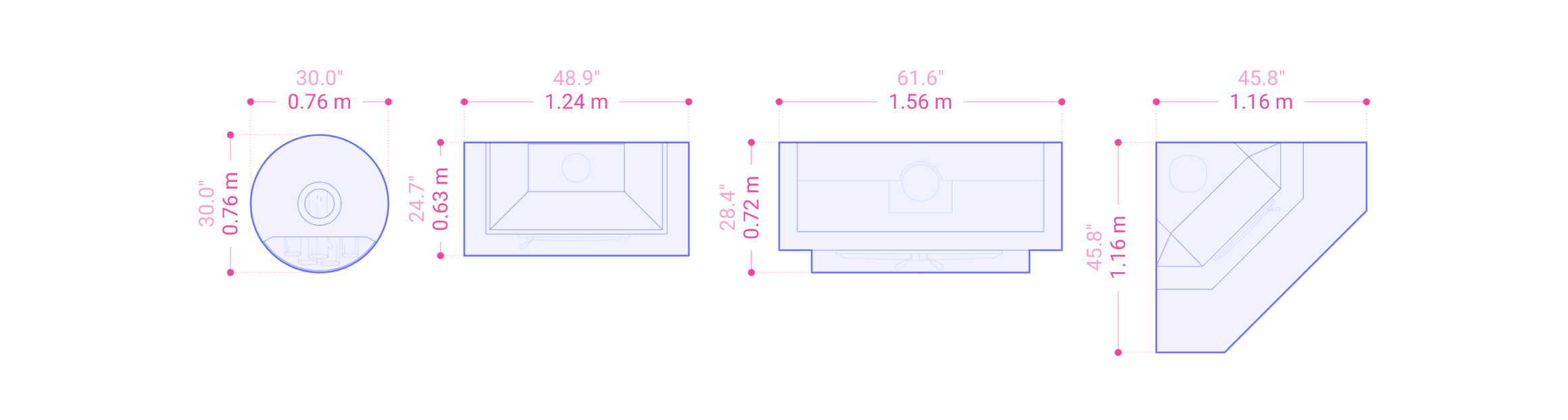

Fireplaces Dimensions

A fireplace in the dining room can create a cozy and inviting ambiance for meals and gatherings. However, adhering to safety standards is crucial while planning the fireplace integration into the dining room.

A benchmark size for a fireplace is from 76x76 cm / 29.9"x29.9" to 116x116 cm / 45.7"x45.7".
