Everything about designing a meeting room layout

Meeting Room

Meeting rooms allow groups of 4 - 12 people for collaboration, discussions, presentations, and more. The meeting room size should be determined by the company's needs and the office layout. It is recommended to offer various sizes of meeting rooms, if the space allows it, to accommodate a variety of use cases.

Armchair Dimensions

Armchairs are comfortable, padded chairs designed with armrests and a high backrest, providing a cozy and supportive seating option. A compact armchair is 55x65 cm / 21.7"x25.6", and a large armchair would be 90x85 cm / 35.4"x33.5".

Armchair Dimensions

Armchairs are comfortable, padded chairs designed with armrests and a high backrest, providing a cozy and supportive seating option. A compact armchair is 55x65 cm / 21.7"x25.6", and a large armchair would be 90x85 cm / 35.4"x33.5".

Armchair Dimensions

Armchairs are comfortable, padded chairs designed with armrests and a high backrest, providing a cozy and supportive seating option. A compact armchair is 55x65 cm / 21.7"x25.6", and a large armchair would be 90x85 cm / 35.4"x33.5".

Follow us on social media

Discover Rayon today

Rayon is the fastest software to create perfect architectural drawings. Draw, specify and build, all in one tool.
try it for free
a screenshot of the Rayon app
See latest version
Rayon
  • Features
  • Pricing
  • Use cases
  • Roles
  • Customers
Resources
  • Documentation
  • Community
  • Academy
  • Blog
  • Space Planning Guide
  • Free Assets
  • Student Signup
Company
  • Team
  • Manifesto
  • Careers
Socials
  • Instagram
  • YouTube
  • TikTok
  • LinkedIn
  • Pinterest
  • X
Alternative to
  • AutoCAD
  • Sketchup
  • Vectorworks
  • Revit
  • ArchiCAD
  • FloorPlanner
  • Planner 5D
  • Cedreo
  • Icovia
©2026 Rayon
Privacy PolicyTerms

Chair Spacing & Clearance

When placing chairs around a conference table, note that:

  • A compact arrangement would allow for 20~ cm / 7.9" between chairs.
  • A spacious arrangement would allow for 45~ cm / 17.9" between chairs.

In both cases, you will need a minimum of 75 cm / 29.5" behind the chairs for clearance.

Chair Spacing & Clearance
Open in Rayon

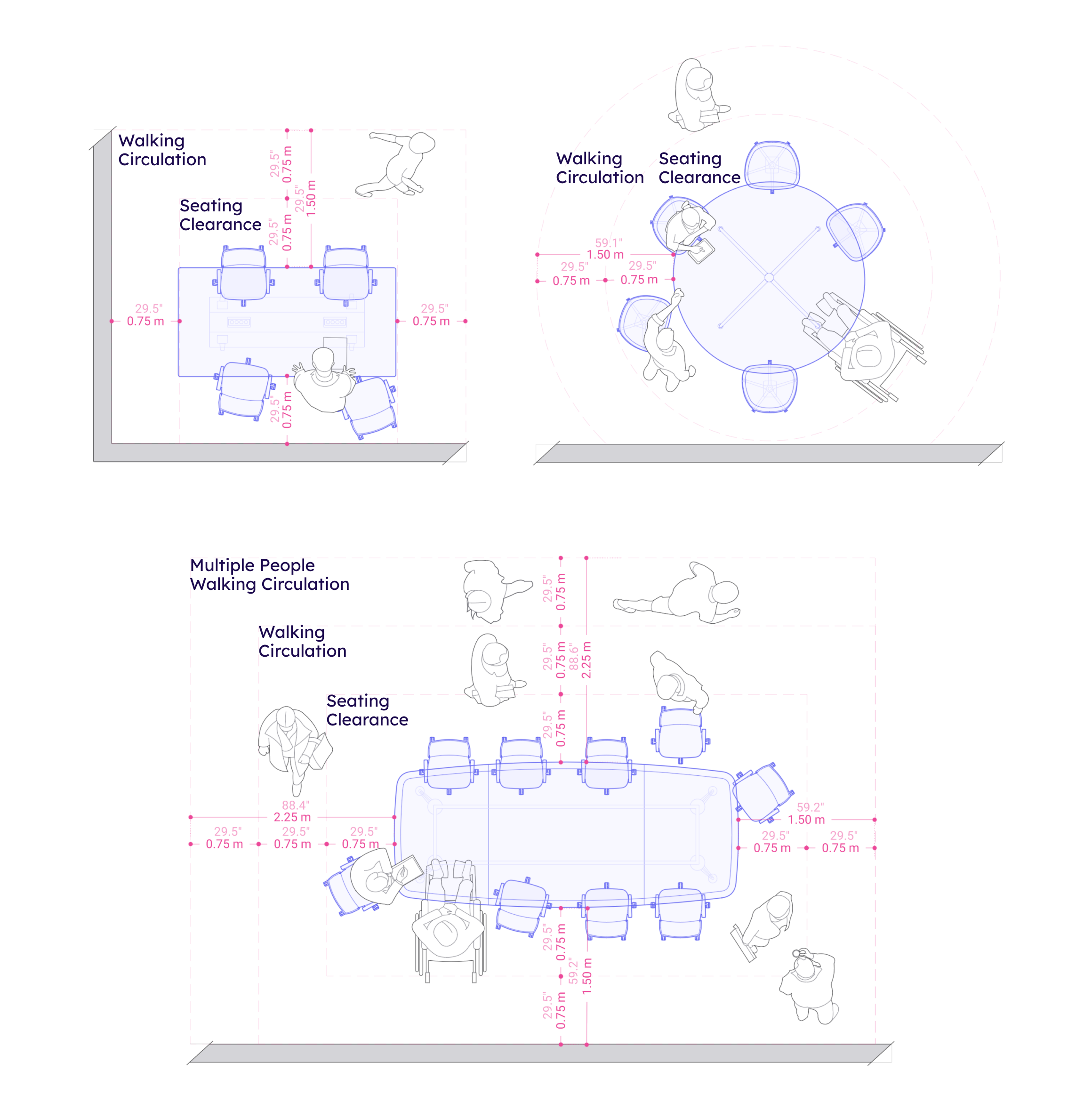

Conference Table Clearance & Circulation

The dimension required around a meeting room table depends on the number of people it accommodates:

  • The minimal size of clearance for seating is 75 cm / 29.5".
  • When both clearance and circulation are needed, the dimensions around a table should be 150 cm / 59.2" (75 cm / 29.5" seating clearance + 75 cm / 29.5" walking circulation).
  • For a large conference table seating more than six people, consider a double walking route of 2.25 cm / 88.6" on at least one of its sides to ensure a good circulation flow.
Conference Table Clearance & Circulation
Open in Rayon

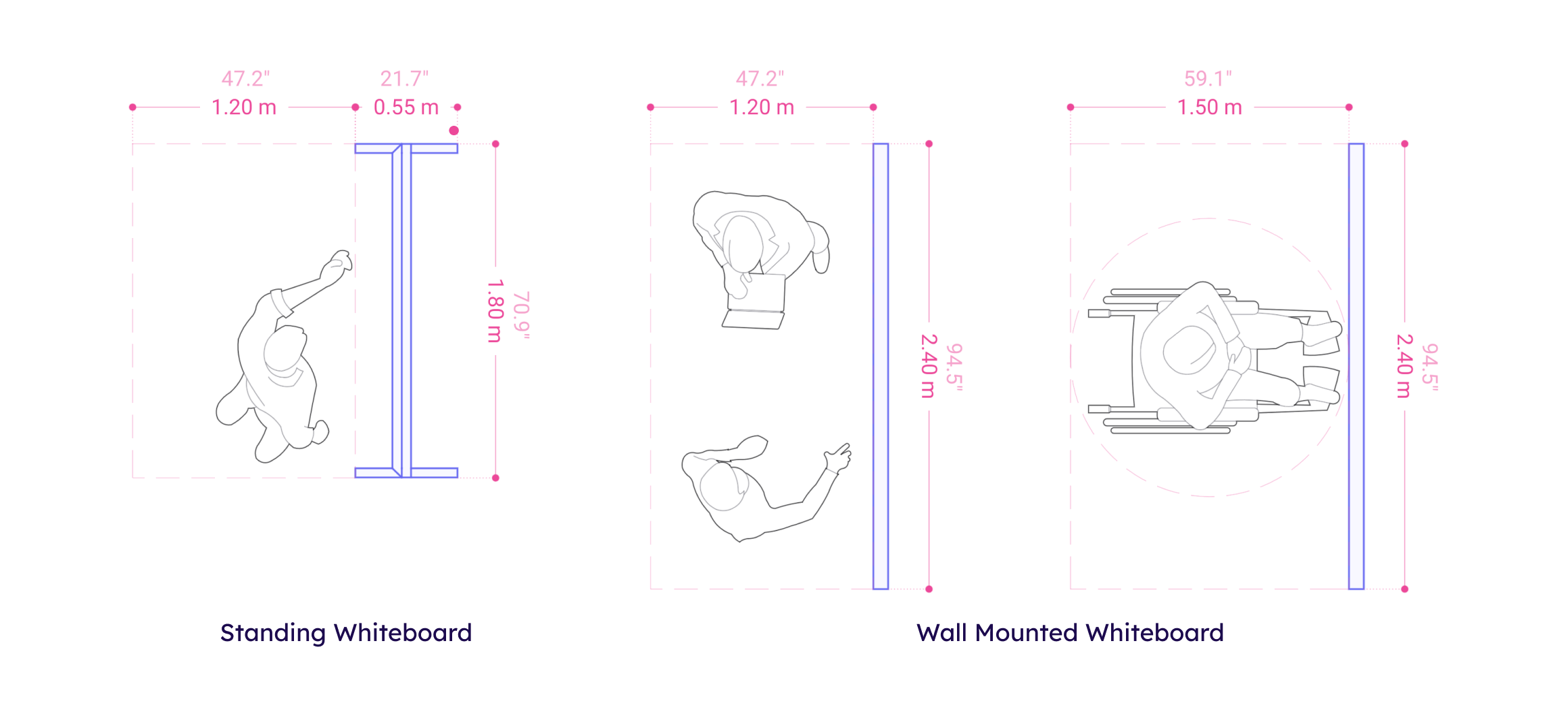

Whiteboard Clearance

The space in front of a whiteboard should be large enough for the presenter to move freely and write comfortably. In that respect, ensure a clearance of 120 cm - 150 cm~ / 47.2" - 59.1" in front of it, which will enable approaching it from various angles.

Whiteboard Clearance
Open in Rayon

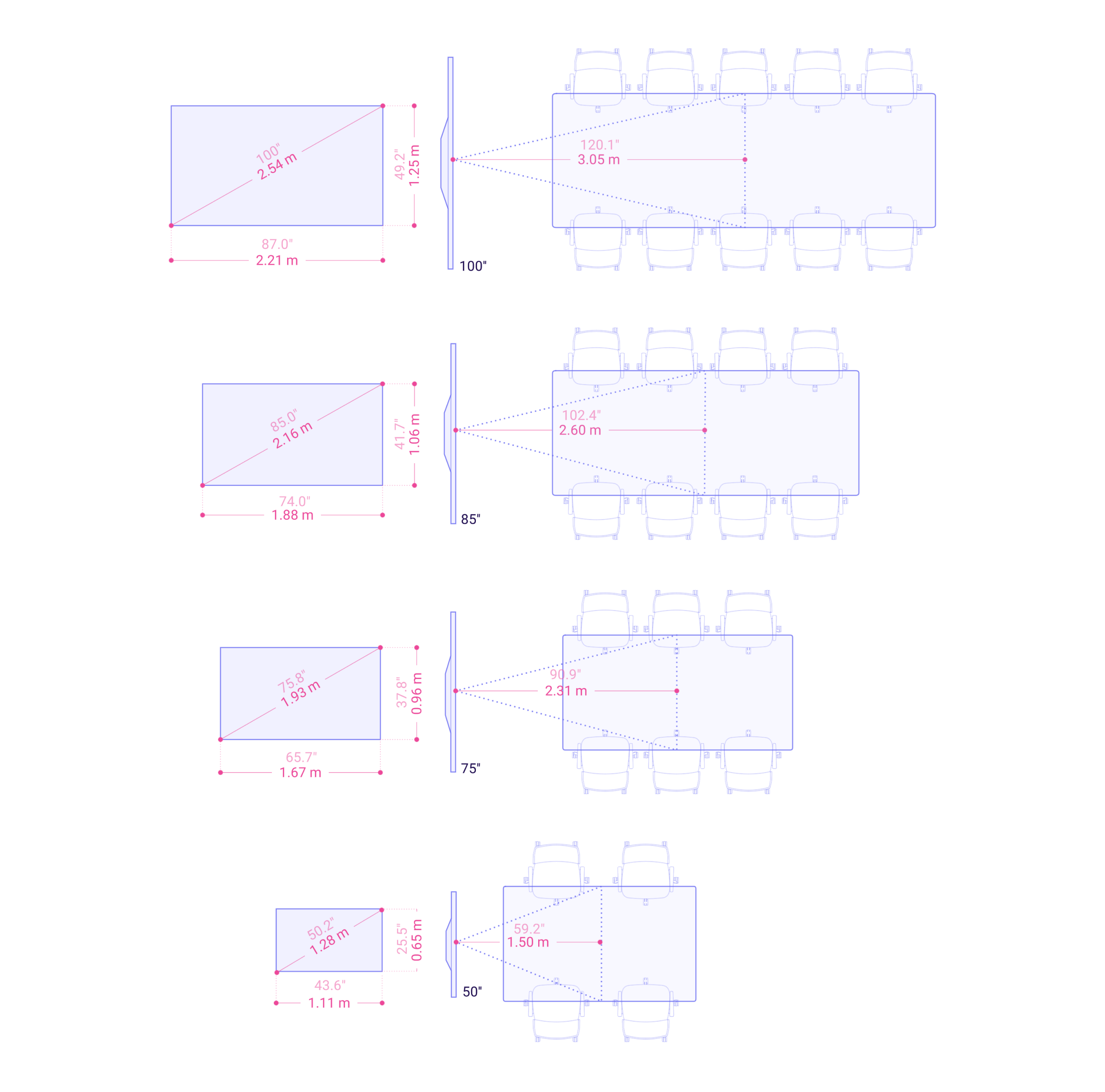

Viewing Distance Between Screen To Seating

Meeting rooms often facilitate presentations. Therefore, it's essential to place a screen in an adequate size within a reasonable distance from the conference table.

  • Correlate the screen size with the table size; a compact four-person table will suit a 50"~ screen, and a spacious ten-person table can afford a 100"~ screen.
  • A general guideline for a viewing distance between a screen and a conference table is multiplying the diagonal screen size by 1.2 to 1.5 to determine the approximate viewing distance range. The outcome is the distance between the screen and the table's middle.
Viewing Distance Between Screen To Seating
Open in Rayon
