Everything about designing a bathroom layout

Bathroom

A bathroom's use case goes beyond personal hygiene. It is a space for refreshment and self-care. This room is typically smaller than others in a household, yet it is equally important. When designing a bathroom layout, it is important to consider the size and placement of fixtures such as the sink, toilet, bath, and shower. Additionally, practicality should be a priority by ensuring storage for toiletries, towels, and other essentials.

Armchair Dimensions

Armchairs are comfortable, padded chairs designed with armrests and a high backrest, providing a cozy and supportive seating option. A compact armchair is 55x65 cm / 21.7"x25.6", and a large armchair would be 90x85 cm / 35.4"x33.5".

Armchair Dimensions

Armchairs are comfortable, padded chairs designed with armrests and a high backrest, providing a cozy and supportive seating option. A compact armchair is 55x65 cm / 21.7"x25.6", and a large armchair would be 90x85 cm / 35.4"x33.5".

Armchair Dimensions

Armchairs are comfortable, padded chairs designed with armrests and a high backrest, providing a cozy and supportive seating option. A compact armchair is 55x65 cm / 21.7"x25.6", and a large armchair would be 90x85 cm / 35.4"x33.5".

Follow us on social media

Discover Rayon today

Rayon is the fastest software to create perfect architectural drawings. Draw, specify and build, all in one tool.
try it for free
a screenshot of the Rayon app
See latest version
Rayon
  • Features
  • Pricing
  • Use cases
  • Roles
  • Customers
Resources
  • Documentation
  • Community
  • Academy
  • Blog
  • Space Planning Guide
  • Free Assets
  • Student Signup
Company
  • Team
  • Manifesto
  • Careers
Socials
  • Instagram
  • YouTube
  • TikTok
  • LinkedIn
  • Pinterest
  • X
Alternative to
  • AutoCAD
  • Sketchup
  • Vectorworks
  • Revit
  • ArchiCAD
  • FloorPlanner
  • Planner 5D
  • Cedreo
  • Icovia
©2026 Rayon
Privacy PolicyTerms

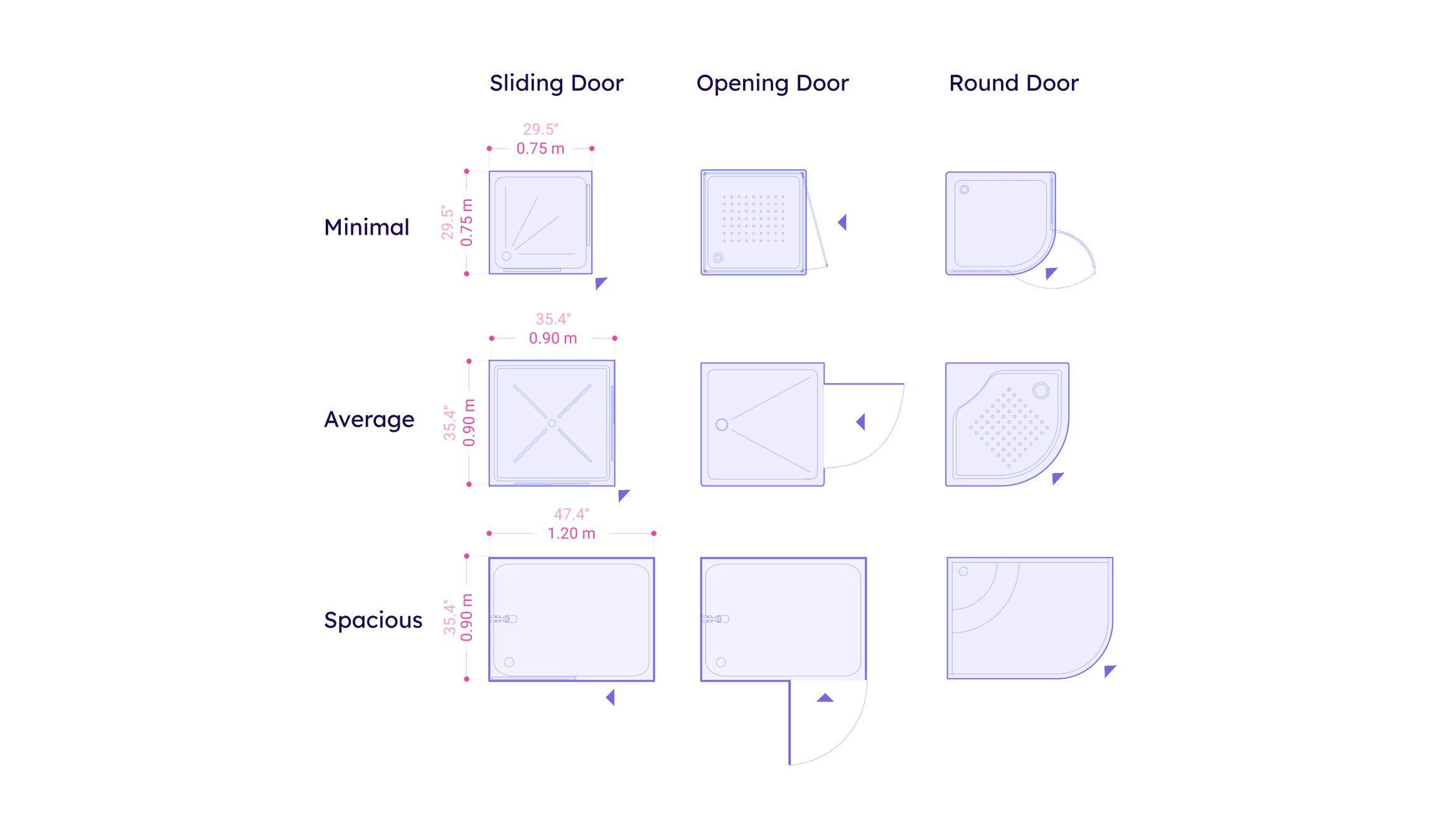

Shower Dimensions

Typical shower dimensions range from 75x75 cm / 29.5"x29.5" to 90x120 cm / 35.4"x47.2", with options for standard or custom sizes based on the bathroom layout.

Shower Dimensions
Open in Rayon

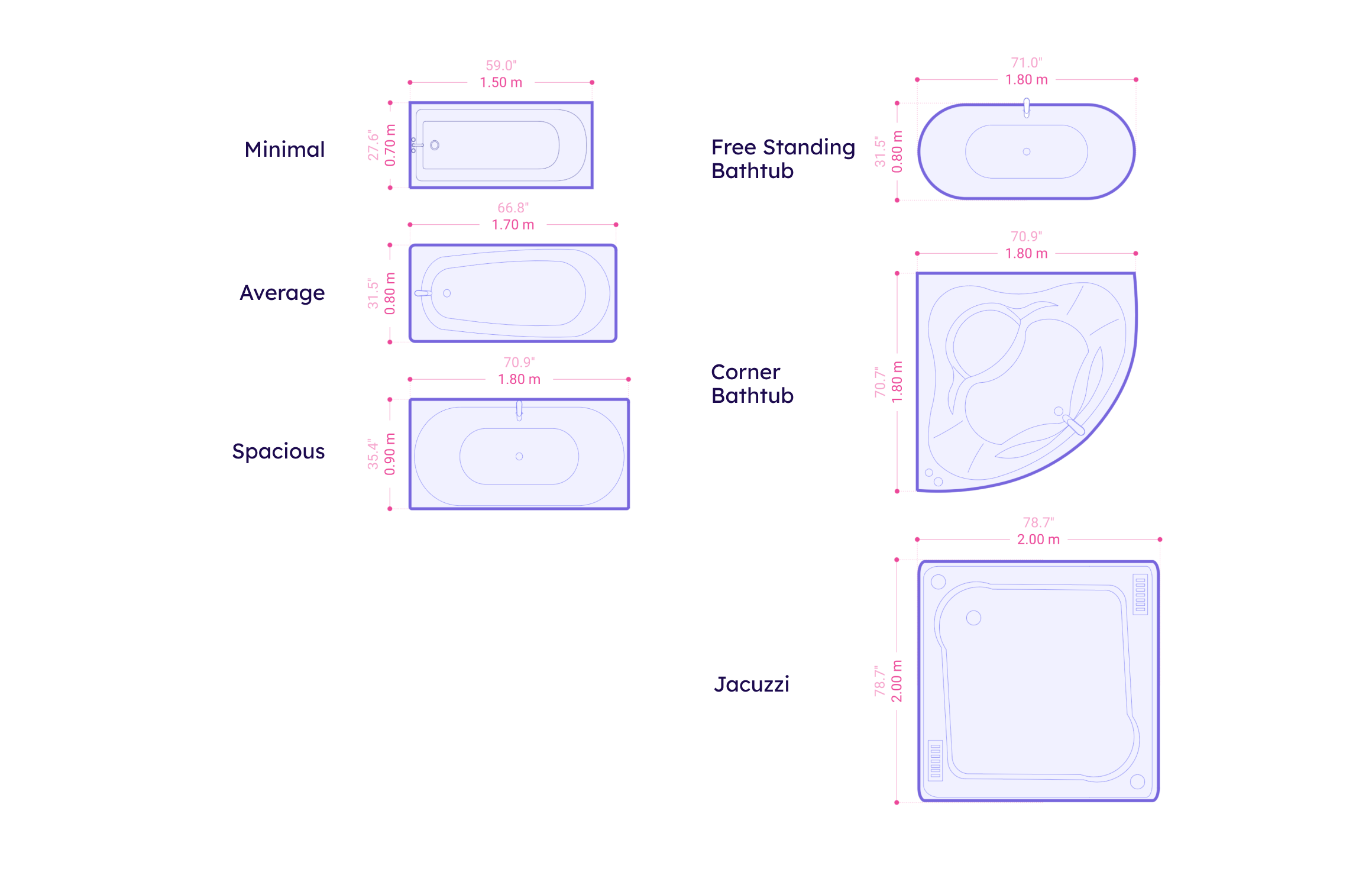

Bathtub Dimensions

The range between minimal and spacious bathtub dimensions is roughly 70x150 cm / 27.6"x59.1" to 90x180 cm / 35.4"x70.9". Different bathtub typologies include free-standing, corner bathtubs, Jacuzzi, and classic bathtubs.

Bathtub Dimensions
Open in Rayon

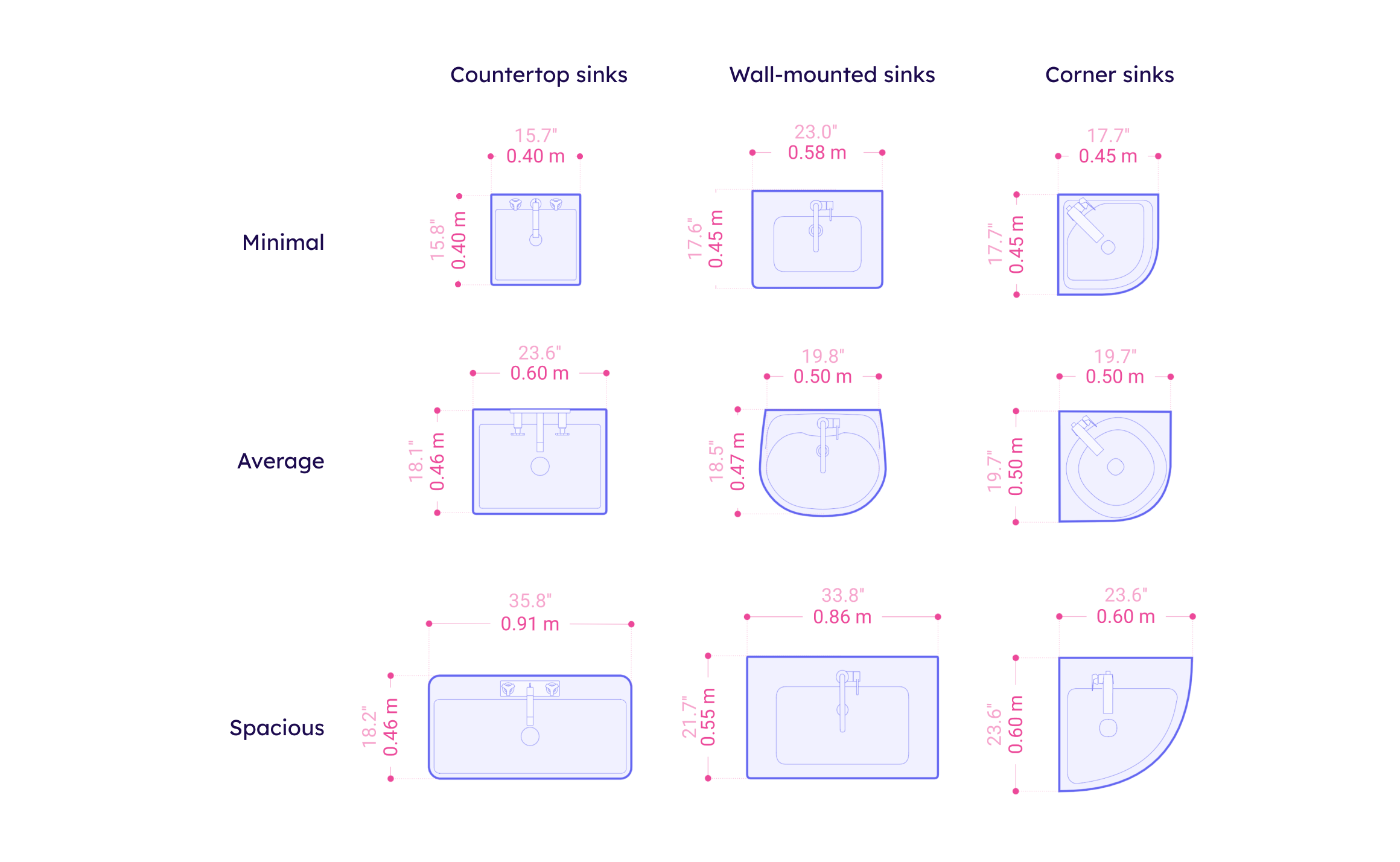

Sink Dimensions

Sink dimensions and typologies vary widely:

  • Countertop sink sizes range between 40x40 cm / 15.7"x15.7" and 46x91 cm / 18.1"x35.8".
  • Wall-mounted sinks range between 25x40 cm / 9.8"x15.7" and 35x60 cm / 13.8"x23.6".
  • Corner sinks range between 45x45 cm / 17.7"x17.7" and 60x60 cm / 23.6"x23.6".
Sink Dimensions
Open in Rayon

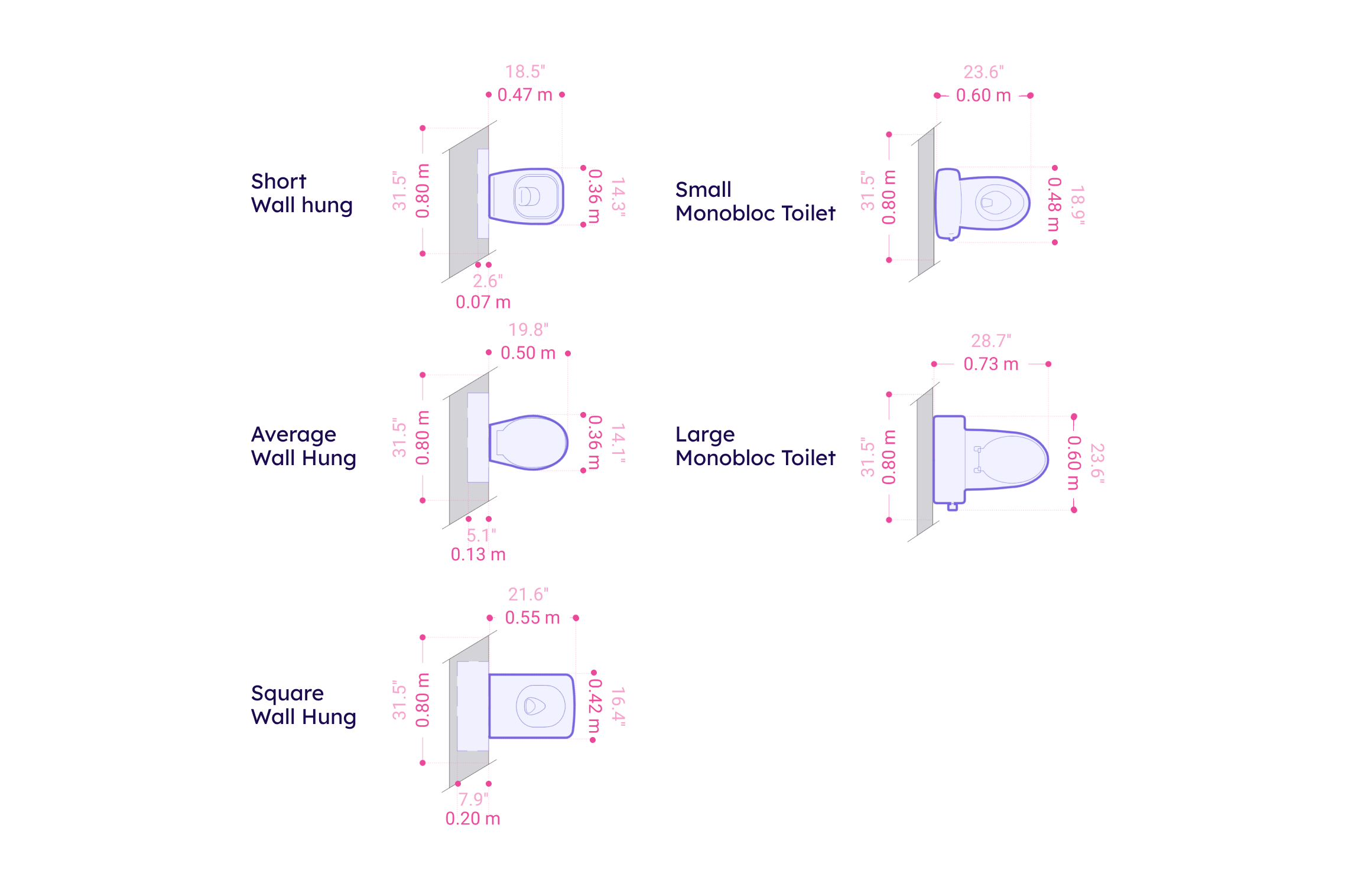

Toilet Dimensions

A Monoblock toilet size is roughly 75x60 cm / 29.5"x23.6". A floating toilet size is approximately 35x50 cm / 13.8"x19.7", with a basin installed in the wall behind it that ranges between 7-20 cm / 2.8"-7.9". Both types of toilets must be coordinated carefully with the plumbing and wall structure. The toilet should always be centralized in an 80 cm / 31.5" clearance space.

Toilet Dimensions
Open in Rayon

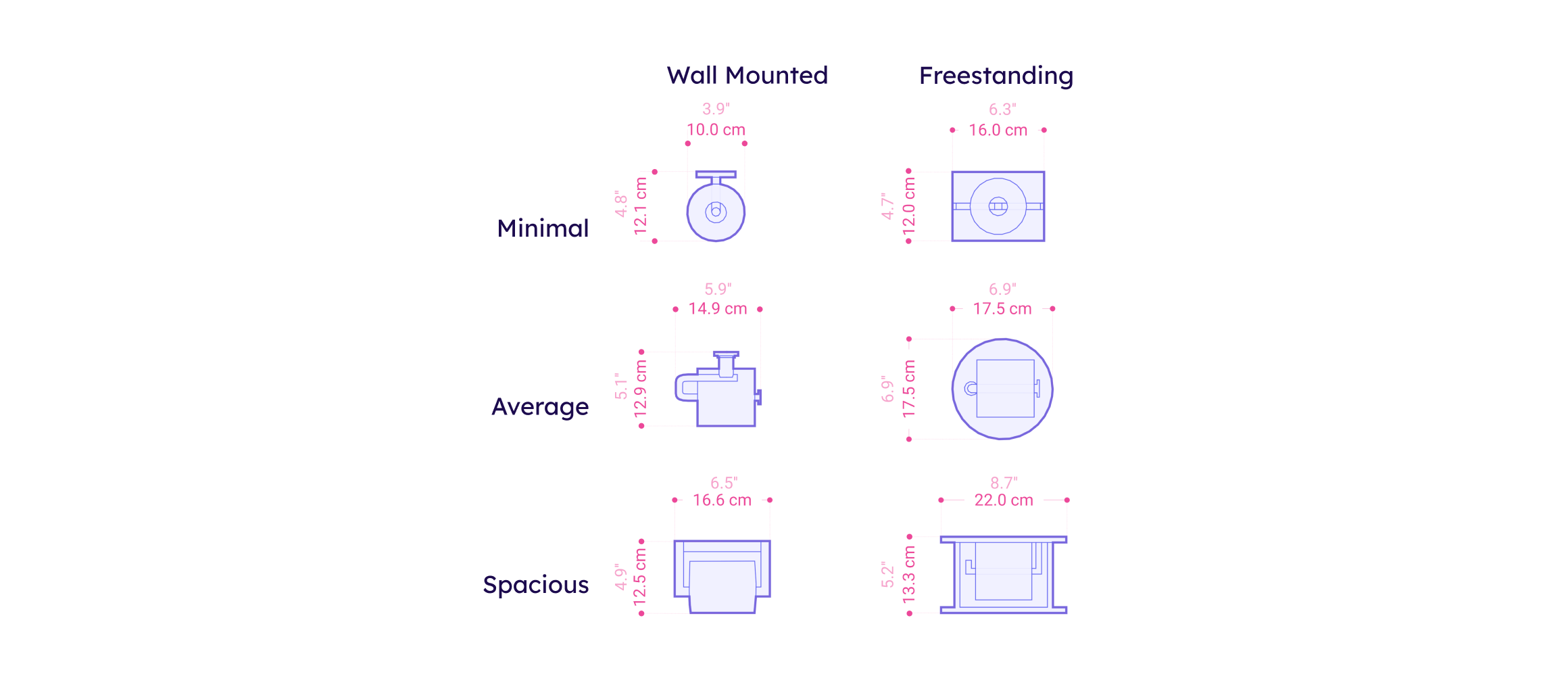

Toilet Paper Holder Dimensions

The size of a toilet paper holder is between 10x12 cm / 3.9"x4.7" and 22x13 cm 8.7"x5.1".

Toilet Paper Holder Dimensions
Open in Rayon
